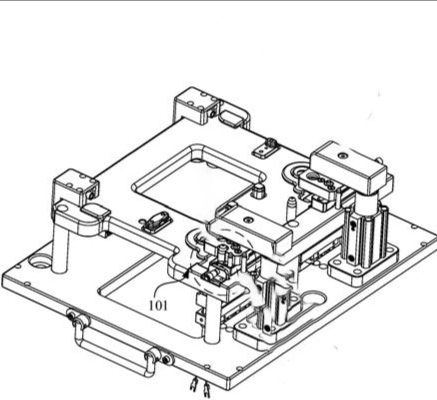

Automatic Antenna Bonding Fixture: Analysis of Core Technologies for Precision Assembly
I. Essential Functions and Technical Positioning
The automatic antenna bonding fixture is a high-precision execution system in the electronics manufacturing field, specially designed for micron-level assembly of FPC flexible antennas, LDS laser-formed antennas, and metal shrapnel antennas in electronic devices. Its core value lies in addressing the alignment requirements of precision components such as 5G millimeter-wave antennas (tolerance ≤±0.05mm), improving manual bonding efficiency by 300% through automated processes (reaching 5-10 seconds per piece), and maintaining a yield rate of over 99.5%.
II. System Architecture and Operational Logic
1. Intelligent Positioning System
Dual-positioning mechanism:
Mechanical rough positioning (±0.1mm): Positioning pin holes with fool-proof design
Visual fine calibration (±0.02mm): 5-megapixel CCD captures feature points for dynamic path offset compensation
2. Adaptive Pressing Module
| Technical Elements | Implementation | Application Scenarios |
|---|---|---|
| Pressure control | Servo motor + film pressure sensor (±0.01MPa) | Anti-damage for FPC antennas |
| Contour pressing head | Silicone curved head / nickel-plated metal head | Bonding to curved frames of mobile phones |
| Motion trajectory | Six-axis robotic arm spatial positioning | 3D curved surface assembly for LDS antennas |
III. Breakthrough Technical Features
1. Dynamic Bending Technology
A telescopic cylinder drives multi-directional pressing blocks to achieve simultaneous vertical/circumferential bending of antennas, eliminating wrinkles in curved surface bonding (Patent No. CN115986368A).
2. Cross-platform Compatibility Design
Modular pressing head library: 10-second quick switching of different adapters
Parameter memory system: Stores ≥200 sets of process recipes (pressure/path/speed)
3. Intelligent Error Prevention Mechanism
Real-time pressure curve monitoring: Automatically interrupts abnormal pressing (offset >0.1mm or pressure exceeds limit by 15%)
Material ID binding: RFID associates product models with process parameters
IV. Deepened Industry Applications
1. Consumer Electronics Field
Mobile phone millimeter-wave antennas: Visual alignment accuracy ±0.02mm, meeting 28GHz frequency band requirements
TWS earphones: Mark-free mounting of miniature NFC coils (minimum unit 5×5mm)
2. Breakthroughs in Special Scenarios
| Sector | Technical Solution | Performance Indicators |
|---|---|---|
| Automotive electronics | High-temperature resistant silicone pressing head (-40℃~125℃) | Bonding strength ≥15N/mm² under vibration conditions |
| Medical devices | Biocompatible adsorption head | Total bacterial count ≤100CFU/cm² |
