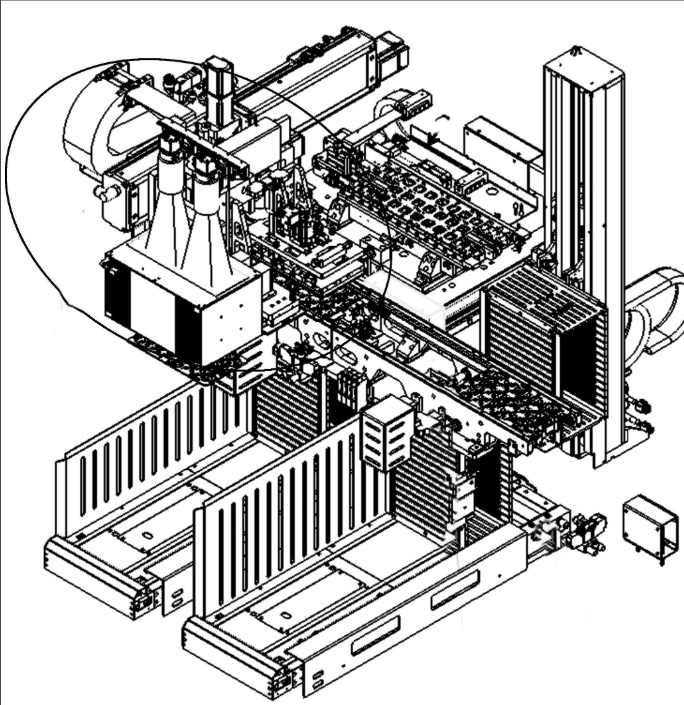

Automatic Antenna Bonding Fixture: Core Equipment for Precision Assembly
Designed specifically for antenna manufacturing, this equipment precisely bonds antenna components to designated positions of electronic products through high-precision automation technology. It is widely applied in fields such as mobile phones, IoT devices, and automotive electronics.
Core Functional Advantages
Sub-micron Level Positioning Accuracy
With a vision positioning system and multi-degree-of-freedom fine-tuning mechanism, it achieves a repeat positioning accuracy within ±0.1mm (typical value), ensuring zero-offset antenna assembly.
Intelligent Pressure Control
Integrated with a pressure sensor feedback system, the bonding pressure is precisely controlled between several grams and tens of grams to avoid damaging brittle antenna components.
Flexible Production Adaptation
The modular design supports rapid model changeover, compatible with various antenna materials (e.g., FPC, LDS, LCP) and different product sizes.
Full-process Automation
Integrating peeling → bending → bonding processes, the single-piece production cycle is ≤5 seconds, significantly improving efficiency.
Industry Application Landscape of Automatic Antenna Bonding Fixture
| Sector | Typical Scenarios | Technical Highlights |
|---|---|---|
| Consumer Electronics | Main antennas/millimeter-wave modules for smartphones, TWS earphone antennas | Vision alignment for anti-wrinkling, vacuum adsorption for mark-free bonding |
| Automotive Electronics | In-vehicle T-Box, V2X communication antennas, millimeter-wave radar antenna boards | Movable profiling parts adapt to curved surfaces; corner bonding without peeling |
| Industrial IoT | Mass production of RFID tags, LPWA antennas (NB-IoT/LoRa) | Feeder supply + manipulator ，24-hour continuous operation |
Key Performance Parameters
Accuracy Range: ±0.01mm~±0.1mm (depending on equipment grade);
Production Efficiency: ≥720 pieces/hour (standard single unit);
Pressure Control: 1-50g adjustable, accuracy ±0.5g;
Compatible Size: Minimum antenna unit ≤5mm×5mm;
