Typical Application Scenarios of Automatic Audio Detection Fixtures
Automated Testing of Headphones/Earbuds: Conduct automatic plug-in and plug-out tests, carry out tests on aspects such as frequency response, distortion, and microphone sound pickup. Achieve 100% full inspection on the production line, which helps to improve the product yield rate.
Speaker Testing: Implement automatic sweep frequency tests to detect issues such as resonance points and damaged voice coils, and support multi-channel parallel testing.
Smart Speaker/Voice Device Testing: Conduct voice wake-up rate tests, and carry out tests on echo cancellation and noise reduction performance.
Automotive Audio Testing: Perform multi-channel surround sound calibration work and simulate environmental noise.

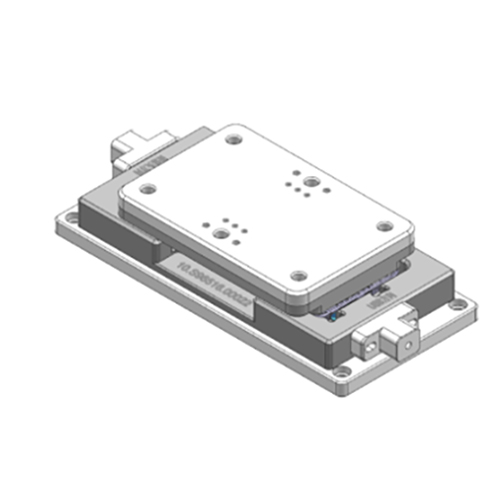

Automatic Audio Detection Fixture (Audio Test Fixture)
The automatic audio detection fixture is an automated testing system. Its main function is to conduct fast and efficient performance tests on various audio devices such as headphones, speakers, and microphones. This system generally integrates hardware fixtures, signal acquisition devices, and a software analysis platform, enabling an automated quality inspection process in the mass production stage.
Core Components of the Automatic Audio Detection Fixture
Hardware Part
Testing Fixture (Fixture)
Simulated Ear/Artificial Ear (which can simulate the acoustic characteristics of the human ear, for example, meeting the requirements of the IEC 60318 - 4 standard)
Artificial Mouth (mainly used to simulate the output of human voice and plays a role in the testing scenario of microphones)
Robot Arm/Automatic Clamping Device (with the function of automatically plugging and unplugging the device under test)
Soundproof Box/Anechoic Environment (used to reduce the interference of environmental noise on the testing process)
Signal Generation and Acquisition Devices: Audio Analyzer, High-precision Sound Card, Power Amplifier
Control and Interfaces: PLC (Programmable Logic Controller), Relay/Switch Matrix, USB/GPIB/LAN Communication Interfaces (used to connect to the PC software)
Software Part: Automated Testing Software, Data Analysis and Report Generation, MES/QC System Integration
Main Detection Items
The automatic audio fixture usually detects the following key parameters:
| Testing Item | Description | Typical Standard |
|---|---|---|
| Frequency Response Curve | Test the output sensitivity of the device at different frequencies | ±3dB@20Hz - 20kHz |
| Total Harmonic Distortion (THD) | Used to detect the degree of nonlinear distortion | <1%@1kHz, 94dB SPL |
| Signal-to-Noise Ratio (SNR) | The ratio of the signal to the background noise | >90dB (for high-end headphones) |
| Impedance | Test the resistive impedance characteristics of the headphones | 32Ω±15% (typical value) |
| Channel Balance | Detect the difference in the output of the left and right channels | <1dB difference |
| Microphone Sensitivity | Test the sound pickup ability of the microphone | -38±3dB@1kHz/94dB SPL |
| Bluetooth/Wireless Test | Test the stability, latency, and bit rate of the wireless connection | AAC/LDAC standard |
Comparison between Automatic Detection and Traditional Manual Detection
| Comparison Item | Automatic Audio Detection Fixture | Traditional Manual Detection |
|---|---|---|
| Testing Speed | Relatively fast (usually 5 - 30 seconds per device) | Relatively slow (depending on the speed of manual operation) |
| Consistency | High (controlled by software, effectively reducing human errors) | Low (there are significant differences among different operators) |
| Applicable Scenarios | Suitable for mass production scenarios (such as the TWS headphone production line) | More suitable for small-batch R&D and debugging work |
| Cost | Relatively high (including equipment cost and software development cost) | Low cost (only basic instruments are required) |
Future Trends
AI Audio Detection: With the help of technologies such as deep learning, achieve automatic identification and classification of abnormal sounds and sound quality defects.
Wireless Testing: Further support the automated testing of products such as Bluetooth LE Audio and Wi-Fi speakers.
Modular Design: Be able to quickly perform wire replacement operations to meet the testing requirements of different product types (such as TWS headphones and smart speakers).
The automatic audio detection fixture plays a crucial role in the audio manufacturing industry. It can significantly improve the testing efficiency and the consistency of testing results, and is suitable for the mass production quality inspection of many audio products such as headphones, speakers, and automotive audio systems. When selecting an appropriate audio fixture, factors such as testing requirements (such as wireless or wired connection methods), production capacity requirements (testing speed), and budget limitations (comparison and selection between high-end APx solutions and low-cost solutions) need to be comprehensively considered.
