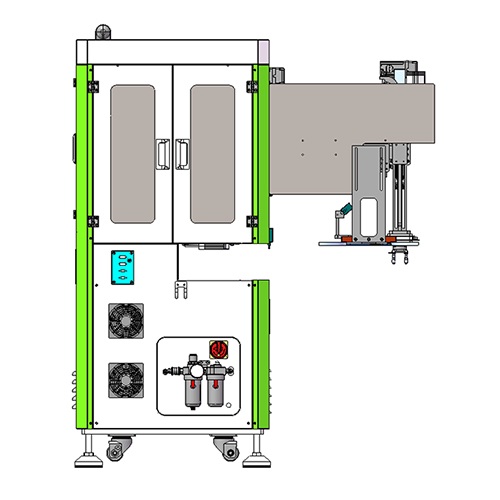

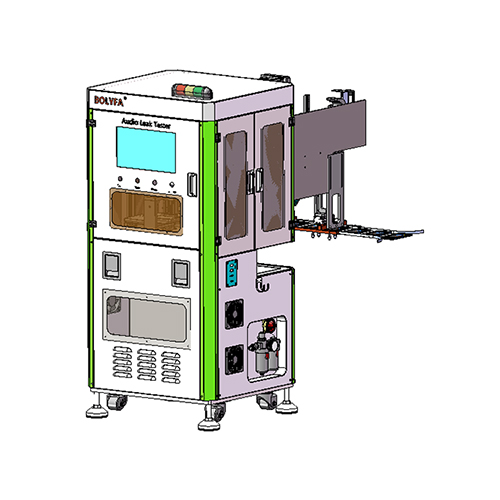

The BOLYFA AT2.8P fully automatic audio air tightness testing equipment is a professional high-precision automated device specifically designed for detecting the air tightness performance of audio equipment. In the field of audio equipment manufacturing, for products such as speakers, headphones, and microphones, their air tightness performance is of vital importance, which is directly related to the sound quality performance and the durability of the products. This equipment strictly detects the sealing status of audio equipment under different pressure conditions by simulating diverse air pressure environments, effectively preventing the occurrence of air leakage or water intrusion, and safeguarding the excellent quality of audio equipment.

Precise Air Tightness Detection: The BOLYFA AT2.8P comprehensively detects the sealing performance of audio equipment by means of the precise principle of air pressure changes, ensuring that there are no leakage hazards in the products. The equipment supports both positive pressure and negative pressure test modes, which can simulate different air pressure environments that audio equipment may encounter in actual use, and comprehensively guarantees the product performance.

Efficient Automated Operation Process: The equipment has fully automatic functions of loading, testing, and sorting, which greatly reduces human intervention and significantly improves production efficiency. It is integrated with an advanced PLC control system internally, precisely regulating each testing link to achieve an efficient and stable testing process.

Ultra-High Precision Measurement Technology: The BOLYFA AT2.8P is equipped with a high-precision air pressure sensor, and the detection accuracy can reach an astonishing ±0.1Pa, which can accurately capture the subtle changes in air pressure. By monitoring the changes in air pressure in real time, the equipment can quickly and accurately determine whether the air tightness of the audio equipment meets the standard.

Diversified and Multifunctional Testing Capability: The equipment has strong compatibility and supports the air tightness testing of various audio equipment, such as speakers, headphones, microphones, etc. At the same time, the testing parameters can be flexibly customized according to the unique testing requirements of different products to meet diverse production scenarios.

Complete Data Recording and In-Depth Analysis System**: The BOLYFA AT2.8P can automatically record detailed testing data and generate professional and standardized test reports. It supports the data export function, which is convenient for enterprises to conduct in-depth analysis of the testing data and provides a powerful basis for product quality traceability and continuous improvement.

Precise Air Pressure Control System: The system includes a high-performance air pump, a precise air pressure sensor, and a precision regulating valve, which work together to precisely control the testing air pressure. It can easily switch between the positive pressure and negative pressure test modes to meet different testing needs.

Professional Testing Chamber: Adopting a sealed chamber design, it provides a stable and reliable environment for placing the audio equipment to be tested. It can customize various specifications of chambers according to different product sizes to ensure the accuracy and adaptability of the testing.

Efficient Automated Loading and Unloading System: Automatic loading and unloading operations are realized through robotic arms or conveyor belts, which greatly improves the testing efficiency. It has excellent compatibility and can adapt to audio equipment of various product sizes and shapes.

Precise Detection System: The high-precision air pressure sensor monitors the changes in air pressure in real time. It can quickly and accurately determine whether the air tightness is qualified and record the test results in detail.

Intelligent Control System: It is fully automatically controlled by an advanced PLC controller to ensure the accuracy and stability of the equipment operation. It is equipped with an intuitive touch screen human-machine interface (HMI), which is easy to operate and convenient for real-time monitoring of the equipment operation status.

Intelligent Sorting System: According to the test results, the equipment automatically sorts the qualified and unqualified products. It effectively improves production efficiency and ensures product quality.

Automatic Loading Link: The audio equipment to be tested smoothly and efficiently enters the testing chamber through a robotic arm or a conveyor belt.

Sealing Detection Stage: After the testing chamber is sealed, the equipment quickly starts the inflation or deflation operation to precisely simulate different air pressure environments.

Air Pressure Monitoring Process: The high-precision sensor continuously monitors the changes in air pressure in real time and accurately determines whether the air tightness of the audio equipment is qualified.

Data Recording Step: The test results are automatically and accurately recorded, and detailed and standardized test reports are generated.

Automatic Sorting Process: According to the test results, the equipment automatically sorts the qualified and unqualified products to effectively control the product quality.

Automatic Unloading Link: The products that have completed the test are orderly sent out of the equipment through a conveyor belt or a robotic arm to connect with the subsequent production processes.

High-Precision Detection: Relying on high-precision sensors, it ensures accurate test results and provides a solid guarantee for product quality.

Efficient Automation: The fully automatic operation mode greatly improves the testing efficiency, reduces labor costs at the same time, and enhances the production efficiency of enterprises.

Multifunctional Compatibility: It supports the air tightness testing of various audio equipment, has strong adaptability, and meets the diversified production needs of enterprises.

Data-Driven Management: Automatically record and conduct in-depth analysis of testing data, providing strong support for quality traceability and product improvement, and helping enterprises optimize production processes.

Stable and Reliable: High-quality components and sealing materials are selected to carefully build the equipment, ensuring long-term stable operation and reducing production losses caused by equipment failures.

Expanding Market Space with a Wide Range of Application Areas

Consumer Electronics: It is widely used in the air tightness testing of audio equipment such as smartphone speakers, headphones, and smart speakers, providing a guarantee for the high quality of consumer electronic products.

Automotive Electronics: It is used for the air tightness detection of in-vehicle speakers, microphones, and other equipment, meeting the high reliability requirements of automotive electronic equipment in complex environments.

Industrial Equipment: It conducts air tightness testing on industrial microphones, walkie-talkies, and other equipment to ensure the stable operation of industrial equipment in harsh environments.

Medical Equipment: It is applied to the air tightness detection of medical audio equipment, strictly ensuring its waterproof and dustproof performance, and guaranteeing the safe and reliable use of medical equipment.

The BOLYFA AT2.8P fully automatic audio air tightness testing equipment can quickly and accurately evaluate the sealing performance of audio equipment relying on high-precision air pressure detection technology and a fully automated operation process. With its remarkable features such as high efficiency, stability, and multifunctionality, it has become an essential key quality detection tool in the audio equipment manufacturing industry. By using this equipment, enterprises can effectively improve product quality, optimize production efficiency, gain an advantage in the fierce market competition, and promote the continuous development of the audio equipment manufacturing industry towards higher quality and higher efficiency.

Testing accuracy: ±0.1Pa, demonstrating unparalleled precision.

Testing pressure range: -100kPa to +100kPa (can be customized according to customers' special requirements) to meet diverse testing needs.

Testing speed: 10 - 30 seconds per piece (the specific time depends on the product size and testing requirements), efficiently ensuring production efficiency.

Applicable product size: The size of the testing chamber can be customized according to customers' needs, achieving wide product adaptability.

Power supply requirements: 220V/380V, 50Hz/60Hz, adaptable to a variety of power supply environments.

Air pressure source requirements: 0.5 - 0.7MPa, ensuring a stable air pressure supply.

Environmental requirements: Temperature 20°C - 30°C, humidity 40% - 70% RH, ensuring the stable operation of the equipment.
