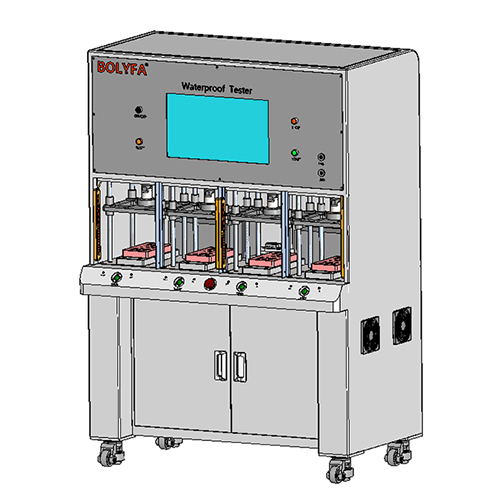

The BOLYFA AT2.8P Real Water Waterproof and Air-tightness Testing Equipment is a professional device used to detect the waterproof performance of products. It evaluates the sealing performance and waterproof rating of products by simulating real water environments (such as water immersion, spraying, pressurization, etc.).

Device Functions

Waterproof Performance Testing: With the help of various methods such as water immersion, water spraying, and pressurized water testing, a comprehensive verification of the product's waterproof performance is carried out.

Air-tightness Detection: By comprehensively using air pressure or vacuum testing methods, it accurately detects whether there are leakage problems in the product.

Multi-scenario Simulation: It can realistically simulate various real environments such as rainwater, spraying, immersion, and high-pressure water impact.

Working Principle

Water Immersion Testing: Completely immerse the product in water and closely observe whether there is any water infiltration.

Spraying Testing: Spray water on the product through a nozzle to vividly simulate the rainwater environment.

Pressurization Testing: Apply pressure under specific water depth conditions to effectively test the product's water pressure resistance.

Combined Air-tightness Testing: While carrying out water immersion or water spraying operations, combine air pressure or vacuum detection technology to comprehensively check for leakage.

Device Composition

Testing Water Tank: Specially used for water immersion testing, usually made of transparent materials for convenient and intuitive observation.

Spraying System: It includes nozzles, water pumps, and flow controllers, which are used to accurately simulate the spraying environment.

Pressurization System: It is mainly used to simulate the deep water pressure environment to meet the testing requirements of high waterproof ratings.

Control System: It includes PLC, touch screen, or computer, which is used to conveniently set the testing parameters and monitor the testing process in real time.

Data Acquisition System: It is responsible for recording testing data in detail, such as pressure, time, leakage volume, etc.

Safety Protection: It is equipped with a series of safety measures such as water level sensors and pressure protection.

Application Fields

Consumer Electronics: It is widely applied to the waterproof testing of electronic products such as mobile phones, earphones, smart watches, and Bluetooth speakers.

Automotive Industry: It is used for the detection of the waterproof performance of components such as vehicle-mounted cameras, sensors, and lamps.

Industrial Equipment: It helps with the waterproof certification work of outdoor lamps, walkie-talkies, and industrial control equipment.

Device Advantages

High-precision Control: It can accurately control key parameters such as water pressure, flow rate, and time.

Multi-functional Integration: It supports multiple testing modes such as water immersion, spraying, and pressurization, with comprehensive functions.

Automated Operation: It greatly reduces human intervention and significantly improves the testing efficiency.

Data Recording and Analysis: It supports the storage, export, and report generation of testing data, which is convenient for data analysis.

High Safety: It is equipped with multiple safety protection measures to ensure the safety of operation in all aspects.

Equipment Dimensions: 1310mm×900mm×1700mm

Equipment Weight: 120Kg

Rated Voltage: AC 100 - 220V (50/60HZ)

Maximum Power: 2KW

Applicable Air Pressure Range: Above 0.5MPa

Test Pressure: 0~0.5MPA

Measurement Error: L. Leak : ±1%, S. Leak : ±0.05%

Operating Temperature Range: 10°C~35°C

Resolution: 0.1Pa

Detection Time: (Adjustable according to the product being detected)

Precision Leak Detector: BF28 (8 pieces)
