Application scenarios of BOLYFA WPT2.8R Waterproof and Air-tightness Detection Equipment:
In the electronics industry, it is mainly used to test the waterproof and airtight performance of portable electronic devices such as mobile phones and smart watches, ensuring that these devices can operate stably and normally in various complex environments.
In the automotive industry, it strictly verifies the sealing performance of key components of automobiles, such as automotive sensors, headlights, and connectors, providing a solid guarantee for driving safety and the reliability of the equipment.
In the field of medical devices, it fully ensures that medical devices and their packaging have good airtightness and waterproof capabilities, safeguarding the safety of patients and maintaining the aseptic state of the devices.
In the consumer goods industry, it is used to test the waterproof performance of consumer goods such as earphones, cameras, and outdoor equipment, significantly improving the user experience and enhancing the durability of the products.

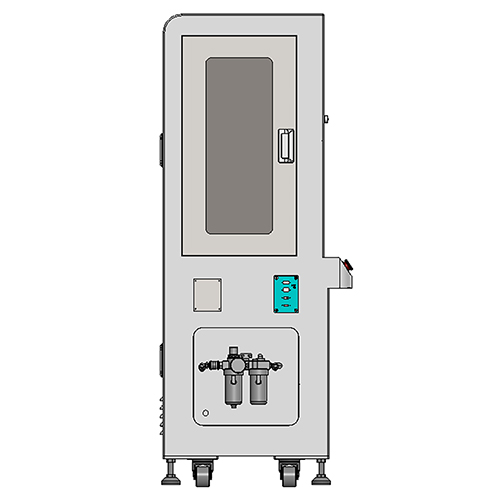

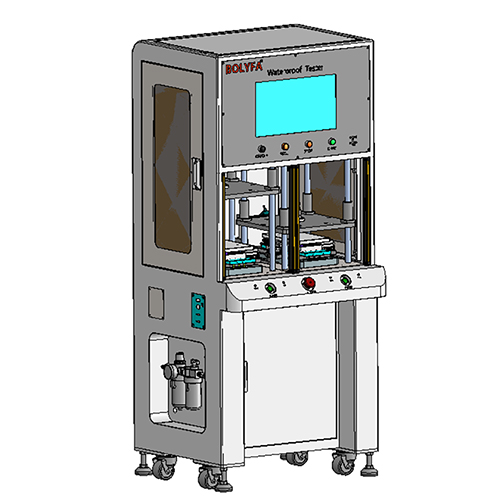

The Bolyfa WT2.4 True Water Air Tightness Testing Equipment is a professional detection instrument used to evaluate the waterproof performance and sealing performance of products.
Functions
Waterproof Testing: Through water immersion, water spraying, and pressurized water testing, comprehensively verify the waterproof performance of products.
Air Tightness Detection: Combine air pressure or vacuum testing to accurately locate the leakage points of products.
Scene Simulation: It can realistically simulate environments such as rainwater, spraying, immersion, and high-pressure water impact to test the waterproof ability of products under different conditions.
Principles
Water Immersion Test: Completely immerse the product in water and observe whether water seeps into the interior of the product.
Spraying Test: Use nozzles to spray water to simulate the impact of rainwater on the product.
Pressurization Test: Apply pressure to the product at a specific water depth to test its water pressure resistance performance.
Combined Air Tightness Test: While performing water immersion or water spraying, conduct an air tightness test to detect the sealing performance of the product under different conditions.
Applications
This equipment is widely used in fields such as automobiles, communication digital products, medical devices, wire connections, military equipment, security lighting, audio appliances, etc., to ensure the waterproof performance of products in various environments.
Advantages
High Precision: Adopt advanced sensors and control systems to ensure the accuracy of test results.
High Efficiency: Capable of completing tests quickly, improving production efficiency.
Reliability: The equipment is stable and can operate for a long time to meet the needs of large-scale production.
Equipment Dimensions: 800mm×800mm×1700mm
Types of Pressure: Two types, positive pressure and negative pressure
Pressure Regulation Method: Mechanical pressure regulating valve
Pressure Regulation Accuracy: ±0.2%FS
Pressure Repeatability Accuracy: 0.1%FS
Test Pressure Range: -30Kpa - 30Kpa (Optional)
Sensor Accuracy: 1pa
Resolution: 1pa
Judgment and Alarm: Automatic judgment with sound + light alarm
Maximum Set Time: Setting range: 0.0~999.9sec, minimum time unit 0.1sec
Historical Data Storage: Supported
USB Interface: 1
RS232/485 Interface: Optional
MES Function: Optional
Code Scanning Function: Optional
Number of Test Channels: Four channels
Ambient Humidity: ≤95%RH (non-condensing)
Power Supply: AC220V
Net Weight: Approximately 200KG
