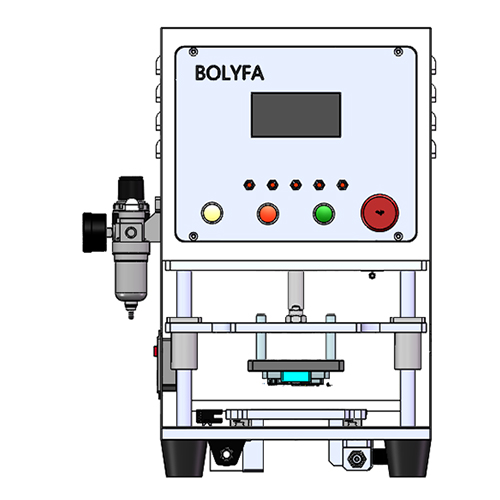

The resistance detection fixture for mobile phone middle frames, as a key tool and device specially designed for accurately detecting the resistance values of mobile phone middle frames, plays a core role in ensuring the electrical conductivity and welding quality of mobile phone middle frames. The mobile phone middle frame, as a crucial component of the mobile phone structure, the quality of its resistance value is directly related to the stability of signal transmission, the performance of the antenna, and the reliability of the overall circuit system. Therefore, resistance detection has become an indispensable and important part of the mobile phone manufacturing process.

Main Functions. The resistance detection fixture for mobile phone middle frames, as a vital quality control tool in the mobile phone manufacturing process, lays a solid foundation for improving the overall performance and reliability of mobile phones by effectively ensuring the electrical conductivity and welding quality of mobile phone middle frames.

1. Precise Resistance Value Detection: By establishing a connection through the contact points between the fixture and the mobile phone middle frame, and using high-precision detection technology, it accurately measures the resistance value of the middle frame to ensure that it strictly complies with the standard requirements specified in the design.

2. In-depth Welding Quality Assessment: Detect the resistance values of the welding points between the middle frame and the circuit board to accurately determine the firmness of the welding and the quality of the electrical conductivity.

3. Automated Batch Detection: It can seamlessly cooperate with automated equipment to achieve rapid batch detection of mobile phone middle frames, greatly improving production efficiency and meeting the needs of large-scale production.

Design Features of the Fixture

1. Configuration of High-precision Probes:

The fixture is carefully equipped with high-precision probes, which can ensure stable and reliable contact with the contact points of the mobile phone middle frame, minimizing measurement errors and ensuring the accuracy of the detection data.

The probes are made of wear-resistant alloy materials, with excellent wear resistance, effectively extending their service life.

2. Optimized Multi-contact Design:

According to the specific structural characteristics of the mobile phone middle frame, multiple detection contacts are scientifically designed to simultaneously detect the resistance values at multiple positions.

The multi-point measurement mode ensures the comprehensiveness and integrity of the detection and avoids detection blind spots.

3. Fast and Precise Positioning System:

The fixture is equipped with a precise positioning device, which can quickly and accurately fix the mobile phone middle frame, ensuring the accuracy of the detection position each time.

By flexibly replacing the adapter fixtures, it can be widely applied to the detection needs of mobile phone middle frames of different models.

4. Strong Compatibility Design:

It has excellent compatibility and can be conveniently connected to a variety of common resistance detection instruments, such as multimeters, LCR meters, etc., to meet diverse detection needs.

It supports manual operation mode and can also achieve automated operation in collaboration with automated equipment.

5. Professional Anti-static Design:

The entire fixture is made of anti-static materials, effectively preventing damage to the mobile phone middle frame or internal precision components caused by static electricity during the detection process.

Working Principle

1. Fixing the Middle Frame in Place: Place the mobile phone middle frame to be detected steadily on the fixture and precisely fix it through the positioning device to ensure that the position of the middle frame is accurate.

2. Preparation for Contact Measurement: The probes of the fixture automatically make close contact with the preset detection points of the middle frame to form a complete closed circuit, preparing for resistance measurement.

3. Precise Reading of Resistance Values: With the help of the connected resistance detection instrument, accurately read the resistance value data in the circuit.

4. Judgment of Detection Results: Analyze and judge the read resistance values according to the pre-set reasonable range of resistance values to determine whether the electrical conductivity of the middle frame meets the standard.

Advantages

1. High-efficiency Detection Performance: With fast positioning and measurement technology, it can achieve efficient detection, which is highly suitable for the detection needs of large batches of mobile phone middle frames.

2. High-precision Detection Results: The stable contact of the probes ensures the high precision and reliability of the measurement results, providing a solid guarantee for product quality.

3. Flexible Adaptability: By replacing different adapter fixtures, it can flexibly meet the diverse detection needs of mobile phone middle frames of different models.

4. Operational Convenience: It supports manual operation, which is convenient for debugging and small-scale detection; it can also achieve automated operation, effectively reducing labor costs.

Technical Parameters

Detection Precision: ±0.1Ω

Number of Probes: Customized according to the design requirements of the middle frame (generally 4 - 8)

Fixture Material: Anti-static engineering plastic or aluminum alloy

Applicable Instruments: Multimeters, LCR meters, etc.

Applicable Middle Frame Size: Customized according to the actual needs of customers
